Recharge Borewell Drilling Services

At Dharm Bhakti Borewell, we provide Recharge Borewell Drilling services designed to help restore and maintain groundwater levels. This eco-friendly method is essential in areas suffering from groundwater depletion and offers a long-term solution to water scarcity.

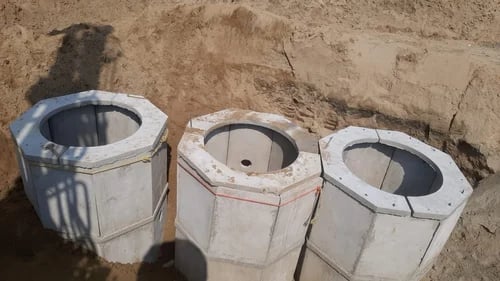

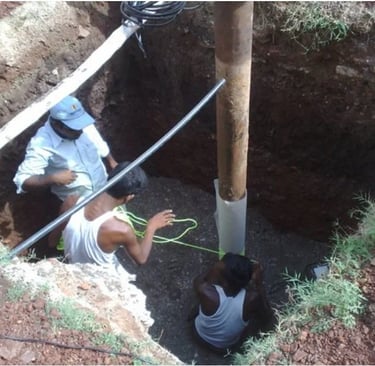

What is Recharge Borewell Drilling?

Recharge borewell drilling is a process that channels rainwater or surface water into deep underground aquifers. By replenishing these natural water reservoirs, this method helps to restore groundwater levels, ensuring a sustainable water supply even in dry seasons or drought-affected areas.

Benefits of Recharge Borewell Drilling:

• Increases Groundwater Levels: Helps maintain and boost water availability in depleted areas.

• Prevents Flooding: Reduces surface runoff during heavy rains by directing water into the ground.

• Cost-Effective Water Management: Recharge borewells are a sustainable alternative to continuously drilling new borewells.

• Improves Groundwater Quality: As the water filters through the soil, its quality often improves, reducing impurities.

• Eco-Friendly: Contributes to water conservation efforts by storing rainwater for future use.

How Does It Work?

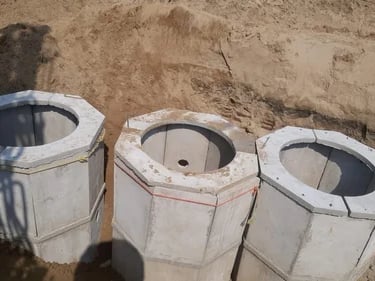

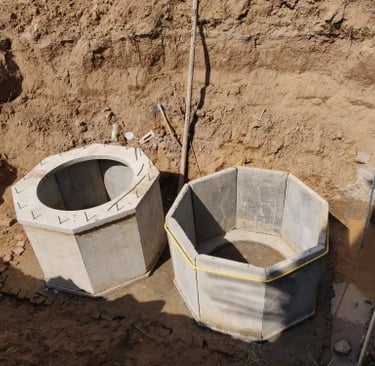

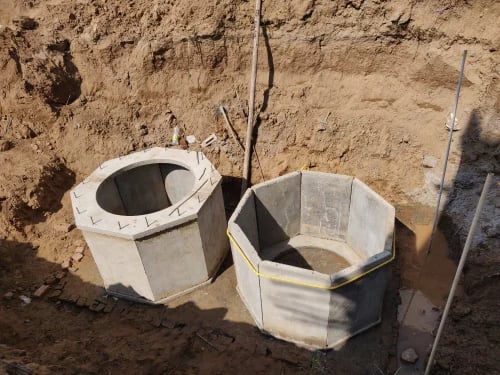

1. Drilling the Recharge Borewell: We drill a borewell specifically for recharging purposes, connected to rainwater harvesting systems or natural water sources.

2. Water Infiltration: The water is filtered through various soil layers as it percolates down to replenish underground aquifers, ensuring clean water reaches deeper water tables.

3. Sustainable Replenishment: This system helps manage water resources by making sure excess rainwater is stored underground instead of being lost to evaporation or runoff.

Where Can It Be Applied?

• Agricultural Fields: Recharge borewells help ensure that farms have access to adequate water throughout the year.

• Urban Areas: Perfect for rainwater harvesting systems in cities, providing a sustainable water supply for homes and businesses.

• Industries: Recharge borewells are increasingly used by industries to promote efficient water management practices and reduce their environmental footprint.

Why Choose Us?

At Dharm Bhakti Borewell, we are experts in designing and implementing recharge borewell systems that are tailored to local geology and water needs. Our experienced team uses modern equipment to ensure the recharge system is both efficient and long-lasting, helping you contribute to a sustainable water future.

Welcome to Dharm Bhakti Borewell, your trusted partner for direct rotary drilling services in Gujarat. With years of experience and a commitment to excellence, we provide reliable and efficient solutions for all your borewell needs

DR (Direct Rotery) Drillling Service

Direct Rotary Borewell Drilling (DR) is a common and efficient method used for drilling borewells, particularly in areas where rapid and deep drilling is required. The technique is well-suited for drilling through a wide range of soil types and rock formations. Here's a breakdown of how the Direct Rotary Borewell Drilling method works and its advantages:

How Direct Rotary Borewell Drilling Works

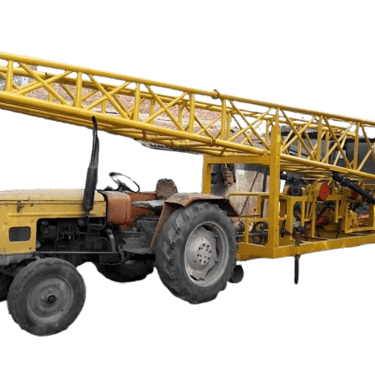

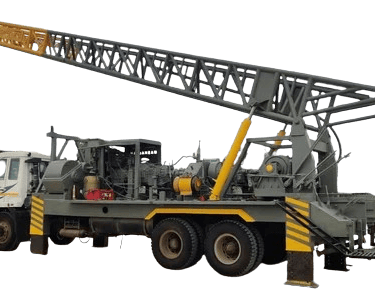

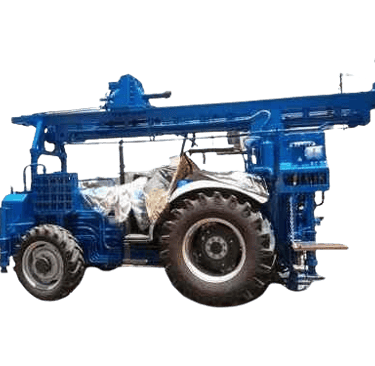

1. Rotary Drill: The system uses a rotary drilling rig with a rotating drill bit attached to the end of a hollow drill pipe. This drill bit, typically made of tungsten or diamond-tipped steel, is designed to cut through different types of materials such as soil, sand, or rock.

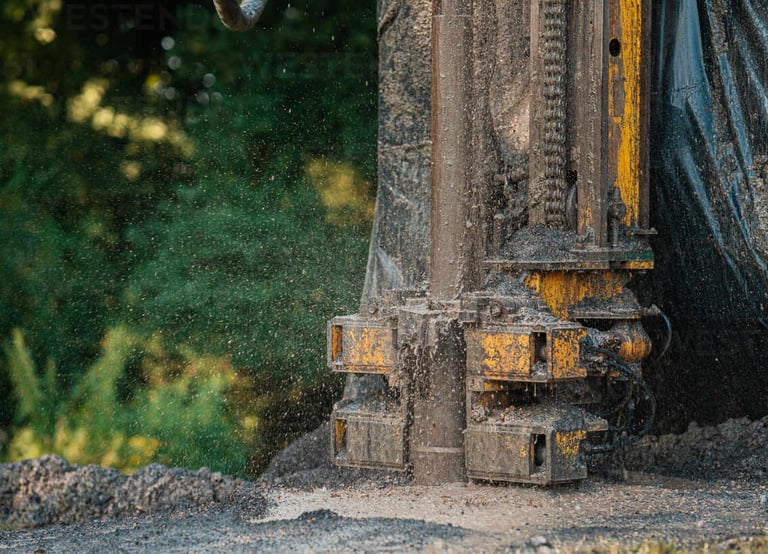

2. Mud Circulation: A significant feature of direct rotary drilling is the use of a drilling fluid, commonly a mixture of water and bentonite or polymer-based fluids. This fluid is pumped down through the hollow drill pipe and out of the bit as it cuts into the ground. The drilling mud serves multiple purposes:

   • It cools and lubricates the drill bit.

   • It helps transport cuttings (loosened material from drilling) to the surface.

   • It stabilizes the borehole by preventing it from caving in, particularly in loose formations.

3. Drill Bit Rotation: The drill bit at the bottom of the drill pipe rotates rapidly, crushing or cutting the material it comes into contact with. The drilling fluid helps remove these cuttings and brings them to the surface.

4. Continuous Operation: The operation is continuous, as the rig drills deeper into the ground. Additional lengths of pipe are added to the drill string to accommodate deeper drilling.

5. Well Casing: As the borehole progresses, steel or PVC casing pipes may be installed to prevent collapse and to maintain the integrity of the well. This casing also helps in preventing contamination of the water from surface pollutants.

Currently we follow Pneumatic Rig to surface and in well by 4", 6", 8", 10" , 12" inch borewells. Technically 4", 6", 8", 10" & 12" are the diameter of the drilling bit to ensure the size of the borewell.

The depth that Direct Rotary Borewell Drilling (DR) can achieve depends on several factors, including the type of equipment used, the geological conditions, and the specific project requirements.

• Shallow Borewells (Up to 50 meters):

  • Ideal for areas with high water tables or shallow aquifers.

  • Common in soft soil or sand-based terrain.

• Medium Depth Borewells (50 to 200 meters):

  • Suitable for most residential and agricultural water wells.

  • Often used where the water table is deeper or where multiple aquifers need to be accessed.

• Deep Borewells (200 to 600 meters or more):

  • Common in regions with deep groundwater levels.

  • Required in hard rock areas where water is located much deeper below the surface.

  • Frequently used for industrial or municipal water supply projects.

• Very Deep Borewells (600 to 1,200 meters and beyond):

  • Utilized for specialized projects like geothermal wells or deep groundwater extraction for industrial use.

  • Can reach extreme depths in challenging geological formations like hard rock, limestone, or bedrock.

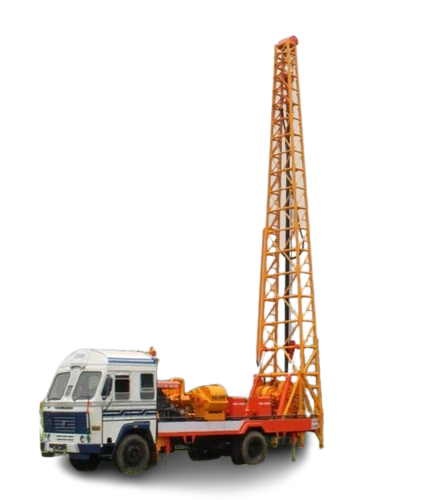

DTH (Down the Hole) Borewell Drilling Services

At Dharm Bhakti Borewell, we pride ourselves on delivering high-quality DTH (Down the Hole) borewell drilling services that cater to a variety of needs, whether for residential, agricultural, or industrial purposes. This method is ideal for situations where standard drilling methods fall short, especially when dealing with tough rock formations or the need for deep water extraction.

What is DTH Drilling?

DTH drilling is an advanced technique where the hammer is located directly behind the drill bit. The impact energy is transmitted to the rock efficiently, allowing for deeper and faster penetration, even in hard rock layers. The hammer's proximity to the drill bit enables better precision and less energy loss.

Advantages of DTH Borewell Drilling:

• Deep and Accurate Drilling: The DTH method is particularly effective for deeper borewells, often required in regions where water lies far below the surface or beneath solid rock.

• High Penetration Rate: DTH drilling offers faster penetration compared to conventional rotary drilling methods, especially in tough geological conditions.

• Suitable for All Terrains: Whether you need a borewell in rocky, mountainous, or hard-to-access terrains, DTH drilling provides superior results with less wear on equipment.

• Reduced Borehole Deviation: This technique helps minimize the chances of borehole deviation, ensuring that the borewell is aligned precisely as required.

• Cost-Effective for Deep Wells: DTH drilling's efficiency translates into reduced project timelines, which can save on labor and operational costs for deeper well drilling.

• Environmentally Friendly: With minimal impact on the surrounding land and environment, DTH drilling ensures less disruption compared to other heavy-duty drilling methods.

  Applications of DTH Drilling:

• Water Wells: Ideal for agricultural irrigation systems, industrial water supplies, and residential borewells.

• Mining Operations: Efficient in drilling for minerals and resource extraction.

• Geothermal Wells: Essential for drilling deep into the earth to access geothermal energy resources.

• Piling Work: Suitable for foundations in construction and infrastructure projects.

           Why Choose Us?

At Dharm Bhakti Borewell, we use the latest DTH drilling technology to ensure:

• Expert Technicians: Our skilled team brings years of experience in handling complex borewell drilling projects.

• Advanced Equipment: We operate modern DTH drilling rigs that are capable of handling even the most challenging projects.

• Tailored Solutions: We understand that every project is unique, so we work closely with you to provide customized drilling solutions that meet your specific requirements.

• Commitment to Quality: We ensure that each borewell is drilled to precise specifications, delivering maximum output and long-lasting performance.

Piling Drilling Services

• At Dharm Bhakti Borewell, we specialize in providing piling drilling services for deep foundation projects. Whether you're constructing high-rise buildings, bridges, or any large infrastructure, our piling drilling solutions ensure a strong, stable foundation that can support heavy loads and withstand challenging soil conditions.

  What is Piling Drilling?

  Piling drilling is an essential technique used in construction to create deep foundations. It involves drilling deep holes into the ground and installing piles made of concrete, steel, or other materials to provide extra support. These piles transfer the load of the structure to stronger soil layers or bedrock beneath the surface, ensuring long-term stability.

• Our Piling Drilling Methods:

  1. Rotary Drilling:

     • We use advanced rotary drilling rigs to create deep, precise boreholes for pile installation. This method is ideal for a wide range of soil types and project requirements.

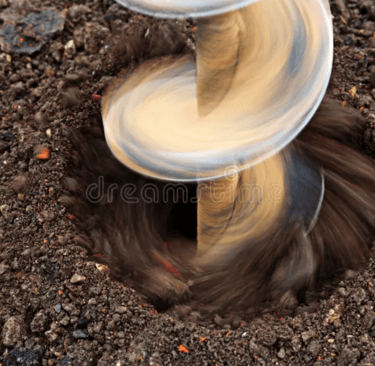

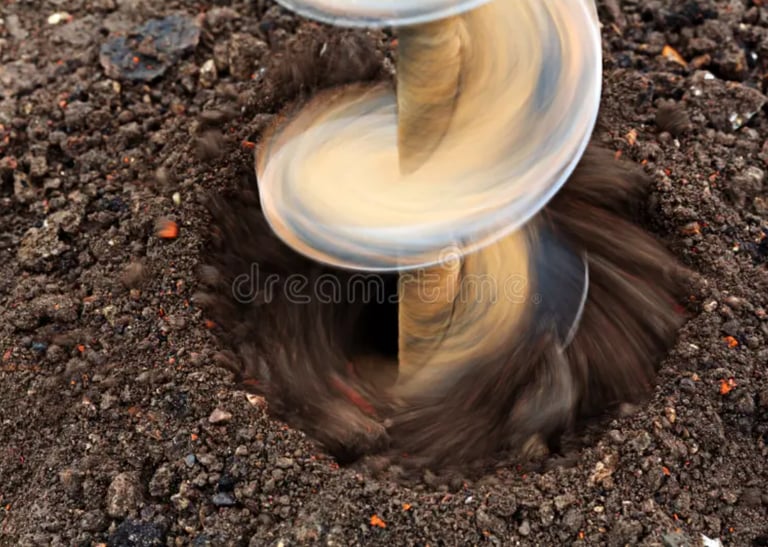

  2. Continuous Flight Auger (CFA) Piling:

     • This method involves drilling a continuous auger into the ground while simultaneously pouring concrete to form the pile. CFA piling is highly efficient and minimizes disruption, making it perfect for urban areas.

  3. Driven Cast-in-Situ Piling:

     • In this method, a steel tube is driven into the ground, and concrete is poured inside the tube to form the pile. This technique ensures maximum strength for foundations in unstable or soft soils.

  Why Choose Our Piling Drilling Services?

  • Experienced Team: Our drilling specialists have extensive experience in handling piling projects for a variety of applications.

  • Precision and Safety: We use the latest drilling equipment to ensure accurate, safe, and effective piling solutions.

  • Custom Solutions: We tailor our drilling services to meet the specific needs of your project, ensuring optimal foundation stability.

  Applications of Piling Drilling:

  • High-Rise Buildings: Deep foundations are essential for supporting the heavy loads of multi-story structures.

  • Bridges and Overpasses: Our piling drilling ensures the structural integrity of bridges, even over difficult terrains.

  • Coastal and Offshore Projects: We provide piling solutions for coastal and offshore structures, where strong, deep foundations are required.

At Dharm Bhakti Borewell, we offer comprehensive soil testing and drilling services to ensure the success of your construction projects. Soil testing is a critical step before any foundation work begins, as it provides valuable data about the ground’s composition, strength, and stability. With our state-of-the-art equipment and experienced team, we provide reliable soil testing to help you make informed decisions.

Our Soil Testing Drilling Services Include:

1. Geotechnical Drilling:

- Using various drilling techniques such as auger, rotary, and percussion drilling, we extract soil samples from different depths to analyze the ground conditions.

2. Soil Sample Collection:

- We collect both disturbed and undisturbed soil samples for laboratory analysis, ensuring accurate data on soil characteristics like moisture content, grain size, and compaction.

3. Lab Testing and Analysis:

- Our partnered laboratories conduct a wide range of tests, including Atterberg limits, shear strength, permeability, and compaction tests, to provide detailed insights into the soil properties.

4. Groundwater Investigation:

- We also determine the groundwater levels and soil permeability to help in planning drainage systems and identifying any water-related issues that might impact construction.

5. Foundation Suitability Assessment:

- Based on the soil testing results, we provide expert recommendations on foundation designs suitable for the specific soil type at your site, ensuring long-term stability and safety for your project.

Soil Testing Drilling Service

# Why Choose Us for Soil Testing?

- Accurate Testing: We use the latest drilling equipment and advanced testing techniques to provide precise soil data.

- Experienced Team: Our engineers and technicians are well-trained in geotechnical testing and offer professional advice tailored to your project needs.

- Comprehensive Reporting: We provide detailed reports outlining soil characteristics, recommendations, and any potential challenges related to soil stability.

# Applications of Our Soil Testing Services:

• Building Construction

• Road and Bridge Development

• Industrial Infrastructure Projects

• Agricultural Planning and Irrigation Systems
